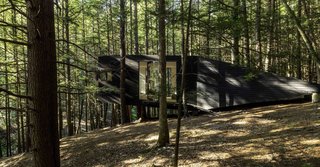

In a remote second-growth forest in Sullivan County, New York, is an off-the-grid tree house that was constructed with the help of the trees around it.

Sited on a steep, sloping hill surrounded by trees, the 360-square-foot project was designed to accommodate a limited $20,000 construction budget—and to be approachable enough that amateur weekend builders could construct it.

Architects Mike Jacobs, Biayna Bogosian, Forrest Jessee, Leopold Lambert, and Luis Gutierrez of award-winning New York practice Jacobschang Architecture designed a tree house structure that overcame the challenge of the site's steep topography.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 1 of 12 -

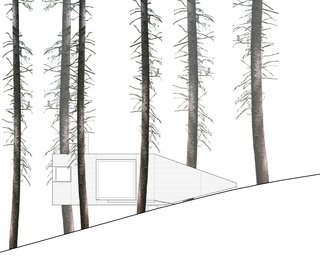

To reduce the amount of site work, and eliminate the need for large footings, pumped concrete, or retaining walls, the house was designed so that most of the construction work could be done above ground, with support from the trees.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 2 of 12 -

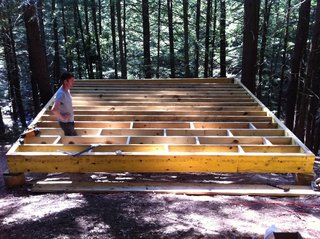

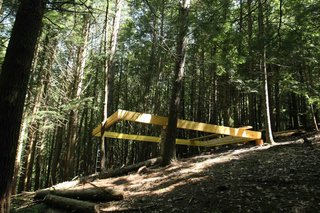

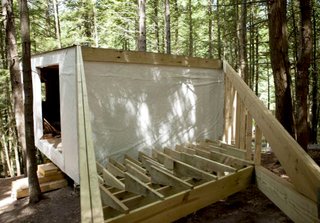

The perimeter of the structure was made with engineered wood beams with standard nominal lumber for all intermediate framing.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 3 of 12 -

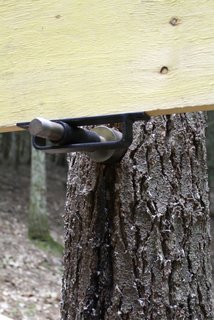

Sonotube footings were used to anchor the upslope corners, and Garnier Limbs were used to distribute half of the weight of the structure to two trees on the site.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 4 of 12 -

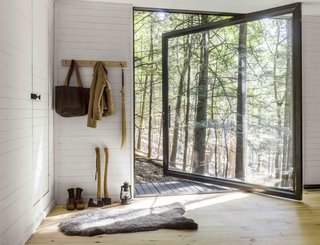

The most expensive components of the project were the three 8' x 8' steel-tube pivot doors that were prefabricated offsite and later installed with dual-insulated glass panels.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 5 of 12 -
A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 6 of 12 -

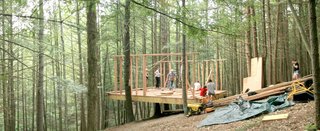

With the help of some friends, the tree house's two owners carried out the construction work.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 7 of 12 -

Eastern Pines felled on the property were milled, kiln-dried, and used for the exterior and interior boards of the tree house.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 8 of 12 -

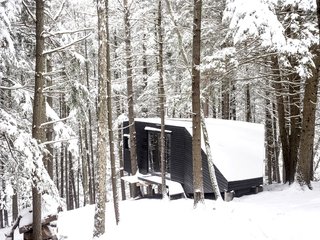

For the exterior, the boards were coated with Scandinavian pine-tar to protect them against long, wet winters.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 9 of 12 -

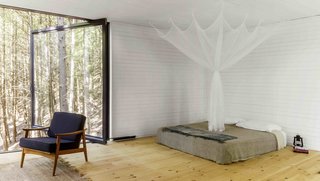

A clear matte sealant was used for the interior walls and ceiling. Thanks to the large glass windows that frame a peaceful scene of trees, the cozy, minimalist interiors are flooded with natural light.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 10 of 12 -

The main source of heat are a Jotul wood stove, and if needed, a portable generator.

A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 11 of 12 -
A Dramatic Tree House by Budget-Conscious DIY Builders - Photo 12 of 12 -

Project Credits:

- Architects: Jacobschang Architecture

- Builder: Owners

- Photography: Noah Kalina
