Green Renovation of Victorian Home in Healdsburg, CA

Add to
Like
Comment
Share
By Arkin Tilt Architects / Published by Arkin Tilt Architects
Idea Garden

The owners, a gynecologist and a successful businessman internationally honored for his social awareness, had already dubbed their project as fertile ground for bringing together people and ideas. The nearly 100 year-old Victorian farmhouse clearly had good bones, but over the years unfortunate facelifts and additions had left it somewhat listless as well as thermally challenged in both summer and winter.

The design team approached the project with the sensibility that the original Victorian had a certain charm and should remain essentially unchanged, but that the renovated kitchen and dining room addition should have an open ‘Zen’ feeling through a connection to the surrounding garden. Improving the home’s livability and energy efficiency were givens, and we sought to model appropriate technologies and innovative solutions.

Green Renovation of Victorian Home in Healdsburg, CA - Photo 1 of 6 -

To improve the efficiency of the original Victorian, a wrap of 2" rigid insulation was applied to the exterior, and new windows installed throughout. Increased attic insulation was coupled with an ‘Ice-House’ ventilated roof, featuring an air space that allows large volumes of air to flow through, keeping the rooms below cool and comfortable.

The added kitchen and dining rooms feature ample south-facing windows along with carefully designed overhangs, awnings and porches that shade the summer and afternoon sun. Like the Victorian, this new wing features high ceilings that allow the warmer air to stratify near the ceiling.


Green Renovation of Victorian Home in Healdsburg, CA - Photo 2 of 6 -

The owners report, "The house now provides an entirely different level of comfort and performance—a quantum leap forward—which has transformed the way we use our weekend home. In the past, the house got so cold …that we just could not use the home much. It would take literally 24 hours to heat the interior to a comfortable level, using both the wood stove and the inefficient baseboard heating. Now the house maintains a comfortable temperature all day and night with little or no supplemental heating.  The renovation has not only transformed the comfort, but our use of the house as well. Now, we are at the house every weekend during the winter, without having to wear our down coats and long underwear."

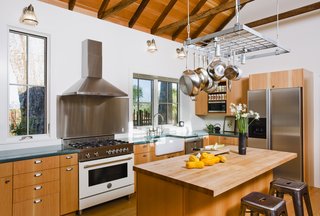

While minimally used, heating is provided by a solar-assisted domestic hot water and space-heating system features the innovative Phoenix ‘Evolution’ all-in-one system for radiant heat in the new portion of the house, and existing baseboard hydronic heat in the old Victorian. Solar collectors are hidden behind the clerestory windows that bring direct sunlight and daylight to the kitchen, located on the north side of the new wing.

The owners continue, "The biggest difference that we have been able to ascertain … is dramatically reduced propane consumption, which powered the old boiler for heating the downstairs. I would estimate that we have reduced the propane consumption by 50% or more. (We have also eliminated burning wood or pressed wood logs entirely for heat.) … the house upgrade has added no additional electrical costs, even though we have additional pumps running the solar hydronic and have greatly upgraded the (inadequate) lighting."

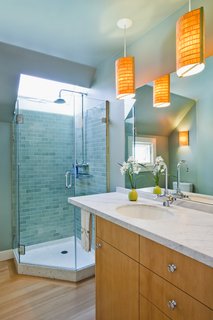

The older Victorian portion of the home features windows installed from the exterior, so the historic interior molding could be retained in place. The upstairs bathroom was fitted with a skylight over the shower, adding light and spaciousness to the small water closet. Locally made Heath tile lines the new shower, and a marble slab salvaged from wainscot at Brooks Brothers in San Francisco now serves as the vanity top; bamboo light fixtures add warmth.

Green Renovation of Victorian Home in Healdsburg, CA - Photo 3 of 6 -

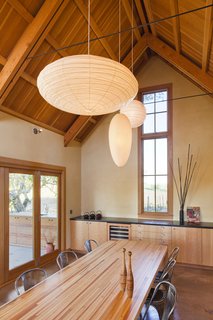

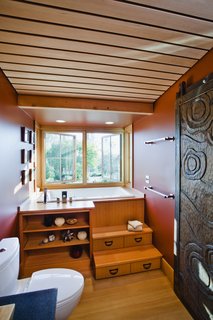

Local craftsmen and sculptors were engaged for the "tansu" tub, uniquely carved bathroom door, dining room table of reused bowling lane, and custom pot rack over the kitchen island. Salvaged vertical grain Douglas Fir bleacher seating was re-planed to create warm, textured ceilings, while simple clay paints and finishes complete the serene quality of each of the rooms. The live-edge bench at the entry was crafted from a slab of walnut wood from a diseased tree that was removed.

Green Renovation of Victorian Home in Healdsburg, CA - Photo 4 of 6 -
Green Renovation of Victorian Home in Healdsburg, CA - Photo 5 of 6 -

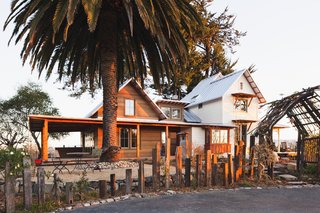

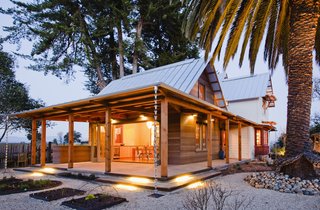

Connecting the home to the garden was the highest priority, and a 14’ wide multi-fold door completely opens the new dining room to the outdoors, while shading the interior space from the western sun. The deep covered porch features an outdoor countertop and sink for washing vegetables on their way from the garden to the table.

Green Renovation of Victorian Home in Healdsburg, CA - Photo 6 of 6 -

Photo credit: Ed Caldwell
